Titanium anodizing is a surface finishing process that not only enhances durability and corrosion resistance, but also boosts the cosmetic appearance of products and aesthetic appeal of titanium components.
The job of a fastener is to mechanically connect two or more components. You can join components in many ways, but what is unique about fasteners is that they typically (though not always) create non-permanent joints.
Titanium anodizing is a specialized surface finishing technique designed to enhance the durability, corrosion resistance, and aesthetic qualities of titanium components. This process is particularly valued in industries where both strength and appearance are crucial, such as aerospace and medical devices. In CNC machining, anodized titanium is often chosen for precision components that require both functional performance and an attractive finish.
This article explores the titanium anodizing process, its various stages, and its applications in different fields.
**What is Titanium Anodizing?**
Titanium anodizing is an electrochemical technique used to thicken the natural oxide layer on the surface of titanium parts. This oxide layer not only improves the metal’s resistance to corrosion and wear but also enhances its visual appeal. Unlike many other surface finishing methods, titanium anodizing offers precise control over both the thickness and color of the oxide layer. This precision makes it suitable for a variety of applications.
The process involves immersing the titanium component in an electrolyte bath and applying a direct current, resulting in a vibrant and durable anodized surface.
**How Does Titanium Anodizing Work?**
The process of titanium anodizing involves several key stages:
1. **Pre-treatment**: The titanium surface must be thoroughly cleaned to eliminate contaminants such as grease and dirt, which could affect the outcome of the anodizing process. This step ensures the formation of a consistent and uniform oxide layer.
2. **Anodizing**: The cleaned titanium piece is submerged in an electrolyte bath and subjected to a specific voltage through a power supply. The direct current drives an electrochemical reaction that thickens the oxide layer on the titanium surface.
3. **Coloring**: By adjusting the voltage, different colors can be achieved on the anodized titanium. This step, known as color anodizing, allows the thickness of the oxide layer to determine the color displayed.
4. **Post-treatment**: After anodizing, the titanium component is rinsed and sealed to improve corrosion resistance and ensure the longevity of the oxide layer. Sealing often involves immersing the anodized surface in a protective solution to prevent environmental damage.
**Detailed Steps in the Anodizing Process**
1. **Cleaning**: Proper cleaning is crucial for effective anodizing. The titanium surface must be free from oils, dirt, and other impurities that could hinder the adhesion of the oxide layer. Typically, this involves soaking the component in a detergent solution, followed by rinsing with deionized water.
2. **Pre-treatment**: This stage involves preparing the titanium surface for anodizing. Chemical etching, often using acids like nitric or hydrofluoric acid, removes any existing oxide film and creates a fresh surface that promotes better bonding with the new oxide layer. The surface is then thoroughly rinsed to remove residual chemicals.
3. **Equipment Setup**: Setting up the anodizing equipment involves configuring a power supply, preparing an electrolyte bath, and placing the titanium component and cathode in the bath. The electrolyte, commonly sulfuric acid, must be mixed to the correct concentration. Precise control over voltage and current is necessary to achieve the desired oxide layer characteristics.
4. **Electrolytic Process**: During anodizing, the titanium piece is immersed in the electrolyte bath, and a direct current is applied. This current causes oxidation of the titanium surface, forming the oxide layer. The thickness and properties of this layer can be controlled by adjusting the voltage and the duration of the process.
5. **Control of Voltage, Current, and Temperature**: Managing these parameters is essential for achieving the desired results. Voltage typically ranges from 15 to 120 volts, with lower voltages used for wear-resistant anodizing and higher voltages for color anodizing. Current density and temperature must also be carefully regulated to ensure a uniform oxide layer and optimal anodizing conditions.
6. **Post-treatment**: The final step involves rinsing the anodized titanium to remove any residual electrolyte and then sealing it. Sealing is performed by immersing the component in hot deionized water or a nickel acetate solution, which helps close the pores of the oxide layer, enhancing its protective properties.
Titanium anodizing is a versatile and effective method for enhancing the performance and appearance of titanium components. By understanding and carefully controlling each stage of the process, it is possible to achieve high-quality results that meet the rigorous demands of industries such as aerospace and medical devices.
Exploring Types of Titanium Anodizing: What You Need to Know
Titanium anodizing is a versatile finishing process that enhances both the functionality and appearance of titanium components. By adjusting factors such as voltage and electrolyte composition, different types of anodized finishes can be achieved to meet specific needs. This article breaks down the two main types of titanium anodizing—Type 2 and Type 3—highlighting their unique features and applications.
**Types of Titanium Anodizing**
1. **Type 2 Anodized Titanium – Focus on Wear Resistance**
Type 2 anodizing is primarily aimed at improving the wear resistance and corrosion protection of titanium parts. This process creates a thicker oxide layer on the titanium surface, which significantly boosts its durability. It is typically carried out at lower voltages, between 15 and 30 volts, resulting in a colorless finish that emphasizes the material’s strength and wear properties.
**Benefits of Type 2 Anodizing:**
– **Enhanced Durability**: The thicker oxide layer provides exceptional resistance to wear and abrasion, making it suitable for high-stress environments.
– **Corrosion Protection**: Offers superior protection against corrosion, ideal for aerospace components and medical implants where longevity is crucial.
– **Preserved Appearance**: The clear oxide layer does not alter the natural color of titanium, maintaining its original appearance.
**Common Applications:**
Type 2 anodized titanium is often used in industries where durability is key, such as aerospace and medical devices. Its ability to withstand harsh conditions while maintaining its mechanical properties makes it a preferred choice for demanding applications.

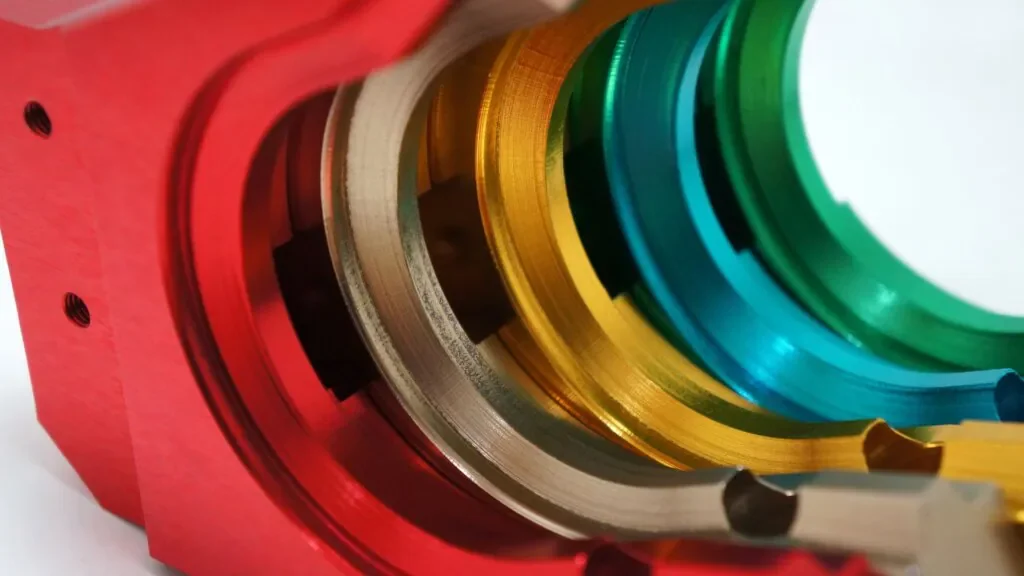

2. **Type 3 Anodized Titanium – Color and Aesthetics**
Type 3 anodizing, also known as color anodizing, focuses on producing vibrant colors by varying the voltage applied during the process. This type of anodizing is performed at higher voltages, ranging from 50 to 120 volts, allowing for a broad spectrum of color options. The thickness of the oxide layer determines the colors, as it refracts light differently depending on its thickness.
**Benefits of Type 3 Anodizing:**
– **Vibrant Color Options**: Offers a wide range of colors, enabling customization and branding opportunities.
– **Aesthetic Appeal**: Enhances the visual appearance of titanium parts, making them suitable for decorative items and consumer products.
– **Customization**: Allows for color coding and distinctive visual characteristics, adding value and versatility to products.
**Common Applications:**
Type 3 anodizing is popular in fields where appearance is as important as performance. It is commonly used for decorative items, jewelry, and consumer electronics, where a visually appealing finish is desired alongside some level of corrosion resistance.
**Comparing Type 2 and Type 3 Anodizing**
When deciding between Type 2 and Type 3 anodizing, it is essential to consider their key differences and the specific needs of your application.
**Type 2 Anodizing:**
– **Pros**:
– **Enhanced Durability**: The thick oxide layer provides excellent wear resistance, ideal for high-stress environments.
– **Superior Corrosion Resistance**: Provides robust protection against environmental factors, making it suitable for critical applications.
– **Natural Appearance**: Maintains the original color of titanium, which can be important for certain applications.
– **Cons**:
– **Limited Color Options**: Lacks the vibrant color choices available with Type 3 anodizing, which might be a drawback for applications requiring visual customization.
**Type 3 Anodizing:**
– **Pros**:
– **Wide Range of Colors**: Allows for various colors and custom finishes, suitable for branding and aesthetic purposes.
– **Visual Appeal**: Enhances the look of titanium parts, making them more attractive for consumer products.
– **Customization Flexibility**: Enables distinct visual characteristics and color coding.
– **Cons**:
– **Reduced Durability**: While still providing corrosion resistance, the focus on aesthetics may result in a thinner oxide layer compared to Type 2 anodizing.
– **Less Suitable for High-Stress Applications**: May not offer the same level of wear resistance as Type 2, making it less ideal for applications with extreme conditions.
Both Type 2 and Type 3 titanium anodizing processes offer valuable benefits depending on the application. Type 2 anodizing is best suited for applications where durability and wear resistance are paramount, such as aerospace and medical devices. In contrast, Type 3 anodizing is ideal for products where visual appeal and color customization are important, such as in jewelry and consumer electronics. Understanding the characteristics and advantages of each type will help you choose the most suitable anodizing method for your titanium components.
### Essential Equipment for Anodizing Titanium and Understanding Color Variations
Anodizing titanium is a precise process requiring specialized equipment to create a protective and aesthetic oxide layer on titanium parts. Below is a comprehensive guide to the essential tools needed for titanium anodizing and an overview of how color variations occur during the process.
**Essential Equipment for Titanium Anodizing**
1. **Power Supply**: A reliable direct current (DC) power supply is crucial for controlling the voltage and current during anodizing. It regulates the anodizing process to achieve the desired thickness and color of the oxide layer.
2. **Electrolyte Bath**: This container holds the electrolyte solution, usually a diluted sulfuric acid mix or other suitable chemicals. The electrolyte bath is where the anodizing reaction takes place, forming the oxide film on the titanium.
3. **Titanium Anodizing Solution**: This is a specialized electrolyte solution formulated specifically for anodizing titanium. Its composition can vary based on the required finish and corrosion resistance.
4. **Anodizing Rack**: A rack or jig, made from titanium or another non-reactive material, is used to hold the titanium parts during the anodizing process. It ensures that all surfaces of the titanium pieces are evenly exposed to the electrolyte solution.
5. **Rubber Gloves**: Essential for safety, rubber gloves protect your hands from the corrosive electrolyte solution and other chemicals involved in anodizing.
6. **Titanium Wire**: This wire is used to suspend the titanium parts in the electrolyte bath, ensuring that the entire surface is covered during anodizing. It must be non-reactive to avoid contaminating the process.
7. **Container for Cleaning**: Before anodizing, titanium parts must be thoroughly cleaned to remove any contaminants. A separate container with a cleaning solution is necessary for this pre-treatment step.
8. **Aluminum Foil**: Used as a cathode in the anodizing setup, aluminum foil helps complete the electrical circuit and facilitates the flow of current through the electrolyte solution.
9. **Acid-Resistant Container**: A robust, acid-resistant container is needed to hold the sulfuric acid or other acidic solutions used during anodizing. It must withstand the chemical reactions involved.
10. **Voltage Regulator**: This tool is used to precisely control the voltage applied during anodizing, ensuring accurate color and thickness of the oxide layer.
11. **Digital Multimeter**: A digital multimeter measures electrical parameters such as current and voltage. It helps monitor the anodizing conditions, ensuring consistency and quality.
12. **Ventilation System**: Proper ventilation is crucial to remove fumes generated during anodizing, maintaining a safe working environment and preventing the buildup of harmful gases.
**Available Colors for Anodized Titanium**
Titanium anodizing produces a stunning array of colors through a process that doesn’t use pigments or dyes. Instead, the color results from the interference of light reflecting off the oxide film. By adjusting the anodizing voltage, different colors are achieved based on the thickness of the oxide layer. Here is a basic color guide:
– **15V**: Bronze
– **25V**: Purple
– **40V**: Blue
– **50V**: Green

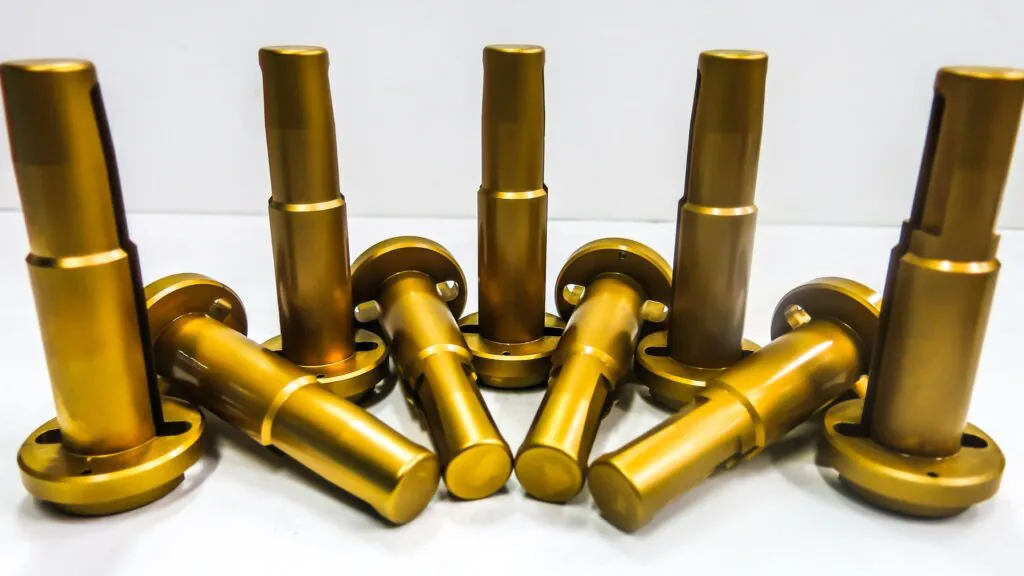

– **70V**: Gold
– **90V**: Pink
– **110V**: Light Blue
**Why Does Anodized Titanium Change Color?**
The color variation in anodized titanium is due to the optical interference effects caused by the oxide film. As the voltage during anodizing is adjusted, the oxide layer’s thickness changes, altering how light is reflected and refracted. This results in different colors. Unlike traditional paint, which relies on pigments, anodized titanium colors are a result of natural optical effects.
**Common Mistakes in Titanium Anodizing and How to Fix Them**
Achieving the perfect anodized finish requires precision, and mistakes can lead to color inconsistencies or undesired results. Here are some common issues and how to address them:
1. **Incorrect Voltage Settings**: If the voltage is not set correctly, the resulting color may be too dark or too light. To correct this, simply re-anodize the titanium part at the appropriate voltage for the desired color.
2. **Uneven Oxide Layer**: An uneven oxide layer can cause patchy or inconsistent colors. Ensure that the titanium parts are thoroughly cleaned and evenly exposed in the electrolyte bath to achieve a uniform oxide film.
3. **Contaminated Electrolyte Solution**: Contaminants in the electrolyte solution can affect the anodizing process. Regularly replace or filter the solution to maintain quality and consistency.
4. **Poor Surface Preparation**: Inadequate cleaning before anodizing can lead to impurities on the titanium surface, affecting color uniformity. Proper pre-treatment and cleaning are essential for a consistent result.
5. **Voltage Fluctuations**: Fluctuations in voltage can cause uneven color across the titanium piece. Use a reliable power supply to maintain a steady voltage throughout the anodizing process.
By understanding the essential equipment needed for anodizing titanium and the factors affecting color variation, you can ensure a high-quality finish and avoid common mistakes. Proper preparation and control are key to achieving the best results in titanium anodizing.
Uses, Benefits, and Challenges of Anodized Titanium
Anodized titanium finds applications across a variety of fields due to its enhanced durability, aesthetic appeal, and functional properties. The anodizing process not only improves the material’s corrosion resistance but also adds an attractive oxide layer. Below, we explore the diverse uses of anodized titanium, its benefits, challenges, and the standards that govern its quality.
**Uses of Anodized Titanium**
Anodized titanium is valued for its unique properties in multiple industries. Here are twelve key areas where it is commonly used:
1. **Aerospace Components**: Titanium parts in the aerospace industry benefit from anodizing due to the enhanced corrosion resistance and lightweight durability. The process helps parts withstand extreme conditions, contributing to overall performance and safety.
2. **Medical Implants**: Anodized titanium is ideal for medical implants because it is biocompatible. This means that the material is safe to use within the human body, minimizing the risk of adverse reactions.
3. **Jewelry**: The wide range of colors available through anodizing makes titanium a popular choice for jewelry. It allows for customization and unique designs that are both stylish and durable.
4. **Automotive Parts**: In the automotive industry, anodized titanium parts are used for their resistance to wear and tear. The enhanced surface properties improve the longevity of components exposed to harsh conditions.
5. **Consumer Electronics**: Titanium is used in consumer electronics for its aesthetic finish and durability. Anodized titanium provides an appealing look for cases and structural components while offering resistance to everyday wear.
6. **Sports Equipment**: The improved performance characteristics of anodized titanium make it suitable for sports equipment like bicycles and golf clubs. The material’s strength and lightweight nature contribute to better performance and durability.
7. **Architectural Elements**: Titanium’s visual appeal and durability are utilized in architecture. Anodized titanium is used in building facades and other architectural elements, adding a modern touch while withstanding environmental exposure.
8. **Marine Applications**: Titanium’s resistance to seawater corrosion makes it suitable for marine applications. Anodized titanium is used in boat fittings and other components exposed to salty environments.
9. **Art and Sculptures**: Artists use anodized titanium to achieve vibrant and long-lasting finishes in sculptures and artworks. The process allows for a range of colors and durable surfaces.
10. **Energy Sector**: In energy applications, anodized titanium is used in fuel cells and batteries due to its conductive properties. The anodized surface enhances performance and longevity.
11. **Eyewear**: The lightweight and durable nature of anodized titanium makes it an excellent choice for eyewear frames. The material’s strength and resistance to wear ensure a long-lasting product.
12. **Watchmaking**: Anodized titanium is used in watchmaking for its range of colors and durability. It provides both aesthetic value and robustness for watch components.
**Benefits of Titanium Anodizing**
Anodizing titanium offers several advantages, making it a preferred choice for many applications:
1. **Corrosion Resistance**: The anodized layer significantly enhances resistance to environmental elements, preventing rust and degradation. This makes anodized titanium ideal for use in corrosive environments.
2. **Improved Cosmetic Appearance**: Color anodizing allows for a wide range of hues, enhancing the aesthetic appeal of titanium parts. This is particularly valuable for applications where visual appeal is important.
3. **Biocompatibility**: Titanium’s biocompatibility makes it suitable for medical implants. The anodizing process further ensures that the material is safe for use within the human body, reducing the risk of reactions.
4. **Wear Resistance**: The oxide film created through anodizing provides increased protection against wear and abrasion. This enhances the longevity and performance of titanium parts in high-stress environments.
5. **Lightweight**: Anodized titanium retains the natural low density of titanium, making it suitable for applications where weight is a concern, such as aerospace and sports equipment.
6. **Enhanced Surface Properties**: The anodized surface improves adhesion for paints and coatings, which can be beneficial for applications requiring additional surface treatments.
7. **Environmentally Friendly**: The anodizing process is relatively eco-friendly compared to other finishing techniques, as it uses fewer harmful chemicals.
8. **Electrical Insulation**: The oxide layer serves as an electrical insulator, which can be advantageous in applications requiring electrical separation.
**Challenges in Titanium Anodizing**
Despite its benefits, anodizing titanium presents several challenges:
1. **Control of Voltage and Current**: Precise control over voltage and current is essential for consistent oxide film thickness and color. Variations can lead to discrepancies in the final product.
2. **Temperature Sensitivity**: The anodizing process is sensitive to temperature changes. Fluctuations can affect the uniformity of the oxide layer and the overall surface finish.
3. **Electrolyte Solution Composition**: Maintaining the correct concentration of the electrolyte solution, typically containing sulfuric acid, is crucial. Imbalances can compromise the quality of the anodized titanium.
4. **Material Variability**: Different titanium alloys respond differently to anodizing. Achieving consistent results across various titanium grades can be challenging.
5. **Surface Preparation**: Proper pre-treatment of the titanium surface is necessary to ensure good adhesion of the oxide film. Inadequate preparation can lead to defects.
6. **Oxide Film Fragility**: While the oxide layer provides protection, it can be fragile and prone to cracking under mechanical stress.
7. **Color Consistency**: Achieving uniform color across large batches of anodized titanium can be difficult due to variations in process conditions.
8. **Limited Thickness**: The thickness of the oxide film is generally limited, which may not be sufficient for some high-wear applications.
9. **Equipment and Tooling Costs**: The initial setup costs for anodizing equipment, including power supplies and electrolyte bath containers, can be high.
10. **Environmental and Safety Concerns**: The use of chemicals such as sulfuric acid requires stringent safety measures and environmental considerations.
11. **Limited Durability Compared to Coatings**: Anodizing improves surface properties but may not match the durability of other coatings under certain conditions.
12. **Difficulty in Anodizing Complex Shapes**: Achieving a uniform oxide layer on complex geometries can be challenging due to uneven current distribution.
**Standards for Anodizing Titanium**
To ensure the quality and performance of anodized titanium, adherence to specific standards is crucial. These standards provide guidelines for the anodizing process, materials used, and the final quality of anodized parts.
**International Standards**
– **ISO 7599:2018**: Although focused on aluminum, this standard is relevant for titanium anodizing. It specifies requirements for anodic oxidation coatings, including preparation, application, and inspection methods. It helps ensure that anodized coatings meet required thickness and corrosion resistance.
**United States Standards**
– **ASTM B892-14**: This standard guide provides procedures for testing anodized coatings on titanium and its alloys. It focuses on adhesion, thickness, and durability, ensuring that anodized titanium parts perform as expected.
– **AMS 2488C**: This aerospace material specification outlines requirements for anodic coatings on titanium alloys. It is particularly relevant for aerospace applications, ensuring that anodized titanium meets high standards of durability and corrosion resistance.
**Industry-Specific Standards**
– **Aerospace Standards**: For the aerospace industry, AMS 2488C specifies the requirements for anodic coatings on titanium, ensuring that they meet the durability and corrosion resistance needed for harsh environments. ASTM B600 provides guidelines for cleaning and descaling titanium before anodizing, crucial for achieving a uniform oxide layer.
– **Medical Device Standards**: In the medical field, ISO 10993 assesses the biocompatibility of medical devices, ensuring that anodized titanium is safe for human use. ASTM F86 covers the preparation of titanium surfaces for biomedical applications, ensuring that anodized implants promote osseointegration and reduce rejection risks.
**Testing and Quality Control**
Rigorous testing and quality control are essential for maintaining the integrity of anodized titanium. Key tests include:
– **Thickness Measurement**: Ensures that the oxide layer is consistent. Methods include eddy current testing, which is non-destructive and quick, and microscopic analysis for precise measurement.
– **Adhesion Testing**: Evaluates how well the oxide layer adheres to the titanium surface. Techniques include the tape test and pull-off test, which measure the strength of the coating’s bond.
– **Corrosion Resistance Testing**: Assesses the oxide layer’s ability to protect titanium parts from corrosion. Methods include the salt spray test and electrochemical testing, which simulate corrosive conditions and evaluate the coating’s effectiveness.
**Process Control**
Effective control of the anodizing process involves managing:
– **Voltage**: Affects the thickness of the oxide layer and color. Higher voltages typically result in thicker layers and different colors.
– **Current**: Impacts the anodizing rate and uniformity. Consistent current ensures even anodization and prevents variations in oxide thickness.
By understanding the diverse uses, benefits, challenges, and standards of anodized titanium, you can better appreciate its value and the precision required in its application and production.
### Anodizing Titanium: A Comprehensive Guide
**Anodizing Titanium: Composition and Environmental Concerns**
Anodizing titanium is a sophisticated process that significantly impacts the quality and performance of the final product. This process involves creating a protective oxide layer on the titanium surface, which improves its durability and aesthetic appeal. Here’s an easy-to-understand overview of the key aspects of titanium anodizing, including electrolyte composition, environmental and safety standards, common issues, and safety precautions.
#### **Electrolyte Composition**
The electrolyte solution used during the anodizing process is crucial for achieving the desired properties of the titanium coating. Here are the main components:
– **Sulfuric Acid**: Often used in type 2 anodizing, sulfuric acid helps create a dense and durable oxide film. This film enhances the titanium’s resistance to wear and corrosion. It’s important to control the sulfuric acid concentration carefully to avoid excessive oxidation or damage to the surface.
– **Electrolyte Additives**: Additives like borax or phosphates can be included in the electrolyte solution to modify the oxide layer’s characteristics. These additives can affect the color and finish of the anodized titanium, making it possible to achieve specific aesthetic or functional properties.
#### **Environmental and Safety Standards**
Ensuring that anodizing processes comply with environmental and safety standards is vital for reducing environmental impact and protecting worker health.
**Waste Management**
Managing waste generated during anodizing is essential to prevent pollution:
– **Wastewater Treatment**: Anodizing facilities need effective wastewater treatment systems to remove contaminants from rinse water before it’s discharged. This involves neutralizing acids, filtering out metals, and removing particulates to meet environmental regulations.
– **Recycling and Disposal**: Proper disposal or recycling of spent electrolytes and other waste materials is critical. Facilities must follow local and federal regulations for hazardous waste to ensure environmental compliance and sustainability.
**Worker Safety**
Worker safety is a top priority during the anodizing process. Here are some key practices:
– **Protective Equipment**: Workers should wear rubber gloves, safety goggles, and aprons to protect themselves from chemicals used in anodizing. This equipment helps prevent injuries and health issues.
– **Ventilation and Safety Protocols**: Adequate ventilation is necessary to control fumes and vapors generated during anodizing. Facilities should have safety protocols in place for handling chemicals, managing spills, and maintaining equipment to ensure a safe working environment.
#### **Common Issues in Titanium Anodizing**
Even with careful management, issues can arise in the anodizing process. Here’s how to address common problems:
1. **Inconsistent Oxide Layer Thickness**
– **Problem**: Variations in oxide film thickness can result in uneven color and reduced performance.
– **Solution**: Ensure consistent power supply settings and uniform immersion of titanium parts in the electrolyte bath. Regularly calibrate equipment to maintain stable voltage and current.
2. **Color Variations**
– **Problem**: Uneven anodizing or variations in the electrolyte solution can cause color differences.
– **Solution**: Maintain a uniform temperature and concentration in the electrolyte. Monitor the process closely to ensure even exposure and avoid disruptions.
3. **Poor Corrosion Resistance**
– **Problem**: Inadequate anodizing can lead to poor corrosion resistance, affecting durability.
– **Solution**: Optimize anodizing parameters for the specific titanium alloy. Adjust anodizing time or voltage to enhance the oxide film’s protective properties.
4. **Surface Defects**
– **Problem**: Imperfections such as pitting or roughness can impact appearance and performance.
– **Solution**: Thoroughly clean and pre-treat the titanium surface before anodizing. Use proper surface finishing techniques to achieve a smooth finish.
5. **Burn Marks**
– **Problem**: Excessive heat or current can cause burn marks on titanium.
– **Solution**: Control current density and avoid prolonged exposure to high temperatures. Adjust power supply settings as needed.
6. **Anodizing Bath Contamination**
– **Problem**: Contaminants in the electrolyte can affect the quality of the anodized layer.
– **Solution**: Regularly replace and filter the electrolyte bath to remove impurities. Use high-purity chemicals and maintain strict quality control.
#### **Durability and Rust Resistance**
**Does Anodized Titanium Wear Off?**
Anodized titanium, while durable, can experience wear over time based on environmental conditions and usage. The oxide layer formed during anodizing serves as a protective barrier, shielding the underlying titanium from moisture and chemicals.
**How Long Does Anodized Titanium Last?**
Anodized titanium can last between 5 to 20 years, depending on the environmental conditions and the quality of the anodizing process. In optimal conditions, the anodized layer can remain effective for over a decade. However, in harsh environments like marine or industrial settings, the layer may degrade more quickly.
**Does Anodized Titanium Rust?**
Titanium itself does not rust. Rusting involves the formation of iron oxide, which doesn’t apply to titanium. The anodized layer, which is a form of titanium oxide, acts as a stable protective barrier, preventing rust and ensuring durability. This oxide layer can be quite resistant to wear and harsh environments.
#### **Safety Precautions for Anodizing Titanium**
Adhering to safety precautions is essential for a successful and safe anodizing process. Here are ten important tips:
1. **Wear Rubber Gloves**: Protect your skin from chemicals by using rubber gloves when handling titanium parts and chemicals.
2. **Use Protective Eyewear**: Safety goggles are essential to protect your eyes from splashes and fumes.
3. **Ventilate the Work Area**: Proper ventilation helps to manage fumes and vapors, reducing exposure to harmful substances.
4. **Handle Chemicals Carefully**: Follow safety guidelines when dealing with sulfuric acid, hydrofluoric acid, and other chemicals. Use appropriate containers and tools to prevent spills.
5. **Monitor Voltage and Current**: Use a reliable power supply to maintain consistent voltage and current during anodizing.
6. **Check Equipment Regularly**: Inspect anodizing equipment for wear and tear to ensure it functions properly and safely.
7. **Maintain Cleanliness**: Keep the work area clean to avoid contamination and ensure a smooth anodizing process.
8. **Train Personnel**: Provide thorough training for all personnel on safety procedures and proper handling techniques.
9. **Dispose of Waste Properly**: Adhere to local regulations for disposing of chemical waste to minimize environmental impact.
10. **Emergency Preparedness**: Have an emergency plan, including first aid kits and fire extinguishers, ready to address any accidents promptly.
By understanding these aspects of titanium anodizing, you can better manage the process, address common issues, and ensure both environmental and worker safety.
### Titanium Anodizing: Costs, Maintenance, and Comparisons
Anodizing titanium is a sophisticated process that enhances the metal’s durability and appearance. Understanding the costs, maintenance, and differences compared to anodized aluminum can help you make informed decisions for your projects. Here’s a simplified overview.
#### **Cost of Titanium Anodizing**
**DIY Anodizing Costs:**
If you choose to anodize titanium yourself, expect to spend between $50 and $200. This budget covers basic equipment and supplies, including a power supply, electrolyte solution, rubber gloves, and other necessary items. Costs may rise if you need additional safety gear or specialized tools.
**Professional Anodizing Services:**
Hiring a professional service typically costs between $5 and $15 per square foot. The final price depends on factors such as the complexity of the anodizing process, the desired color, the thickness of the oxide layer, and the volume of parts being processed. Specialized industries like aerospace and medical devices often face higher costs due to stringent quality standards and precision requirements.
#### **Anodized Titanium vs. Anodized Aluminum: Cost Comparison**
Anodized titanium is generally more expensive than anodized aluminum. This is due to the more complex processing involved with titanium, which has unique surface properties and requires specialized equipment. Titanium’s superior corrosion resistance and strength add to the cost. On the other hand, anodized aluminum is less expensive because it involves simpler processing and is more cost-effective for large-scale projects. However, while aluminum is versatile and affordable, it doesn’t match the strength and wear resistance of titanium.
#### **Anodizing Time**
The anodizing process typically takes between 30 minutes and 2 hours. This timeframe includes preparation, anodizing, and rinsing. Several factors can influence the duration, such as the desired thickness of the oxide layer, the type of electrolyte solution used, and the specific color you want to achieve. Proper control of voltage and current is crucial for ensuring a consistent and high-quality finish.
#### **Maintaining Anodized Titanium**
To keep anodized titanium looking its best and performing well, follow these maintenance tips:
– **Regular Cleaning**: Use a mild soap and water solution to clean the titanium surface. Avoid abrasive materials that could scratch the oxide layer. For deeper cleaning, opt for a non-abrasive cleaner designed for anodized finishes.
– **Rinsing and Drying**: After cleaning, rinse the titanium thoroughly and dry it with a soft cloth to prevent water spots.
– **Protection from Harsh Conditions**: Store anodized titanium away from harsh chemicals and extreme temperatures to prevent discoloration and fading.
– **Careful Handling**: Handle anodized titanium products with care to avoid scratches or dents that could damage the protective oxide film. Regularly inspect your items for wear and tear to address any potential issues early.
#### **Comparing Anodized Titanium and Anodized Aluminum**
Both anodized titanium and anodized aluminum have their unique advantages:
– **Anodized Titanium**: Known for superior corrosion resistance and wear properties, titanium is ideal for demanding applications such as aerospace components and medical implants. The anodizing process creates a durable and vibrant oxide layer, making it suitable for decorative items as well.
– **Anodized Aluminum**: This material is lighter and more cost-effective, often used in consumer electronics and architectural applications. While it provides good corrosion resistance, it doesn’t match the strength or durability of anodized titanium. However, its lower cost makes it a practical choice for large-scale projects.
When choosing between titanium and aluminum, consider the specific requirements of your project, such as durability, weight, and cost.
#### **Frequently Asked Questions**
1. **Is Anodizing Titanium Safe?**
Yes, anodizing titanium is safe when proper safety measures are followed. This process involves using an electrolyte solution and controlled voltage to create an oxide film on the titanium surface. Essential safety precautions include wearing rubber gloves and protective eyewear to avoid chemical exposure. Adhering to these guidelines ensures the safety of the process for both users and the environment.
2. **What Is the Best Solution for Anodizing Titanium?**
The best solution for anodizing titanium is an electrolyte containing sulfuric acid. This solution forms an oxide layer on the titanium, enhancing its corrosion resistance and wear properties. Maintaining precise control over the electrolyte bath and power supply is crucial for achieving high-quality results, particularly in industries where durability and surface properties are critical.
3. **Do You Need Distilled Water to Anodize Titanium?**
Yes, distilled water is recommended for anodizing titanium. Tap water can contain minerals and impurities that may interfere with the electrolyte solution, affecting the quality of the anodized surface. Using distilled water helps maintain the integrity of the oxide layer and ensures consistent results in color anodizing.
4. **How Strong Is Anodized Titanium?**
Anodized titanium is known for its exceptional strength and wear resistance. The anodizing process creates a robust oxide layer that enhances the titanium’s surface properties, making it more resistant to scratches and corrosion. This makes anodized titanium suitable for demanding applications like aerospace components and medical implants.
5. **What Voltage Do You Use for Anodizing Titanium?**
The voltage used for anodizing titanium generally ranges from 15 to 110 volts. Higher voltages produce thicker oxide layers and can achieve different colors. A regulated power supply is essential for maintaining consistent results and meeting the necessary standards for wear and corrosion resistance.
6. **Can You Anodize Titanium with Heat?**
Heat alone cannot anodize titanium. The anodizing process requires an electrolyte solution and a direct current power supply to create the oxide layer. While heat is not directly used in anodizing, it can affect the oxide film’s properties. A controlled environment is necessary for consistent color and corrosion resistance.
7. **Do You Need to Etch Titanium Before Anodizing?**
Yes, etching titanium before anodizing is an important step. Etching removes impurities and prepares the surface for better adhesion of the oxide layer. This process typically involves using an acid, such as hydrofluoric or nitric acid, to enhance the quality of the anodized finish and ensure consistent color.
8. **Can You Remove Anodizing from Titanium?**
Yes, anodizing can be removed from titanium using an acid bath, such as hydrofluoric or nitric acid. This process requires careful handling and proper safety precautions due to the corrosive nature of the chemicals. After stripping the oxide film, rinse the titanium thoroughly to remove any residual acid.
By understanding the costs, maintenance requirements, and differences between anodized titanium and anodized aluminum, you can make more informed decisions for your projects. Anodized titanium offers exceptional durability and aesthetic appeal, making it a valuable option for various applications.
